（半自動）DRF-6000型 轉臺式半自動真空脈沖封焊機

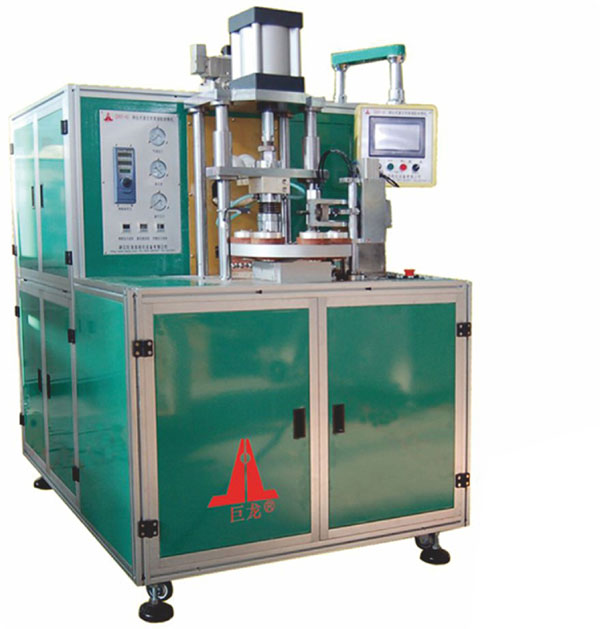

DRF-6000 Turntable Automatic Pulse Welding Machine
本機主要應用于石英晶體、聲表濾波器、傳感器、晶體管抽真空充氮?dú)饷苄苑夂福梢杂脕?lái)焊接有色金屬、電真空器件、電機熱保護器的抽真空充氮?dú)夥夂�。采用進口PLC程控，觸摸屏控制，六工位高精度轉盤式設計，人工上料、自動焊接、機械手自動取出合格和不合格分檢在不同工位上同步工作，極大提高了工作效率，同時又提高了操作安全性。采用米亞基焊接電流監測儀，自動化程度高。
This machine is mainly used for vacuum seal welding of quartz crystal, SAW filter, sensor and transistor, and can be used for welding non-ferrous metal, electric vacuum device and motor thermal protector.
It adopts imported PLC program control and touch screen control, six-position high-precision turntable design, manual feeding, automatic welding, automatic removal of the robot and substandard segregation work in different stations, greatly improving the work efficiency. Improved operational safety. Using Miyaki welding current monitor, a high degree of automation.
技術參數/Technicai Parameters
| 電源電壓Supply voltage |
AC220V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
充電電壓Charging voltage |
0~1000V DC |
| 儲能能量Energy storage | 6000J |
|
電容容量Capacitance |
12000uF |
|
輸入電流Input Current |
20A |
|
工位數Workstations |
6 |
