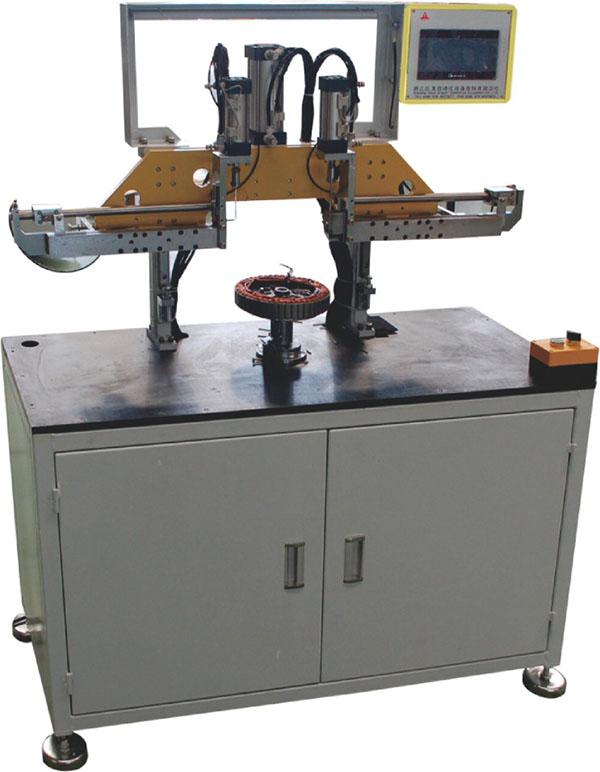

ESI-2S型 定子雙頭蓋槽機
ESI-2S Two Heads Stator Slot Insulation Machine
適用于電動車電機定子繞線后的自動蓋槽，采用注塑排列式專用塑料槽楔，進口PLC程控，伺服電機旋轉，中文顯示界面，機械聯動設計，放入定子后自動夾緊，自動定長切斷，兩邊自動插入定子槽，自動分度，所以動作一次性完成，操作簡單，生產效率高。
Applicable to automatic covering groove of the electric motor stator after winding. Using injection-type special plastic slot wedge, imported PLC control, servo motor rotation, display interface, mechanical linkage design, automatic clamping the stator, automatic cutting the fixed length, automatically inserting the stator slots on both sides, automatical indexing , so the operation is completed in one time. The operation is simple and the production efficiency is high.
技術參數/Technicai Parameters
| 電源電壓Supply voltage |
AC220V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
功率Total power |
2kw |
| 定子外徑Stator Outer Diameter | Φ198~Φ262mm |
|
定子疊厚Amature Depth |
14~60mm |
