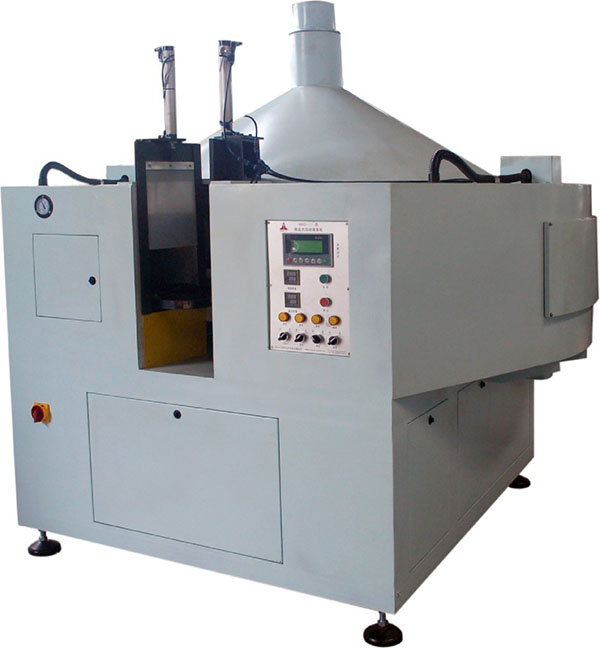

WRD-22型轉盤式定子水平滴漆機
WRD-22 Turntable Vanishing Stator Machine
本機適用于定子滴漆并預凝膠的專用設備，定子不動，滴漆頭往復回轉，通過滴漆的繞組具有較高的絕緣性能，大大提高了其防潮、防霉、防大電流沖擊，耐機械震動和電氣性能。采用三菱PLC程控，中文顯示器操作和修改參數，平盤步進轉臺式結構，自動閘門，有預熱和凝膠雙通道加熱系統(tǒng)，用戶自備固化烤箱進行固化。
This machine is suitable for stator painting and pre-geling.The stator does not move, the painting heads reciprocate.So the windings has high insulation performance by painting, which greatly improves its moisture resistance, mildew resistance , large current shock resistance, mechanical shock resistance and electrical performance. It adopts Mitsubishi PLC program control, text display for operation and modification parameters, flat plate stepping rotary structure. This machine has preheating and pregeling dual channel heating system.The user owns the heating oven to dry..
技術參數/Technicai Parameters
電源電壓Supply voltage
AC380V±10% 50Hz
氣源壓力Air pressure
0.5~0.7MPa
總功率Total
power
8kw
0~30r/min
定子外徑Stator OD
用戶定制
工位數Workstationssa
10~30
滴漆頭回轉轉 Reciprocation speed
特殊規(guī)格可定制Special specifications can be customized
