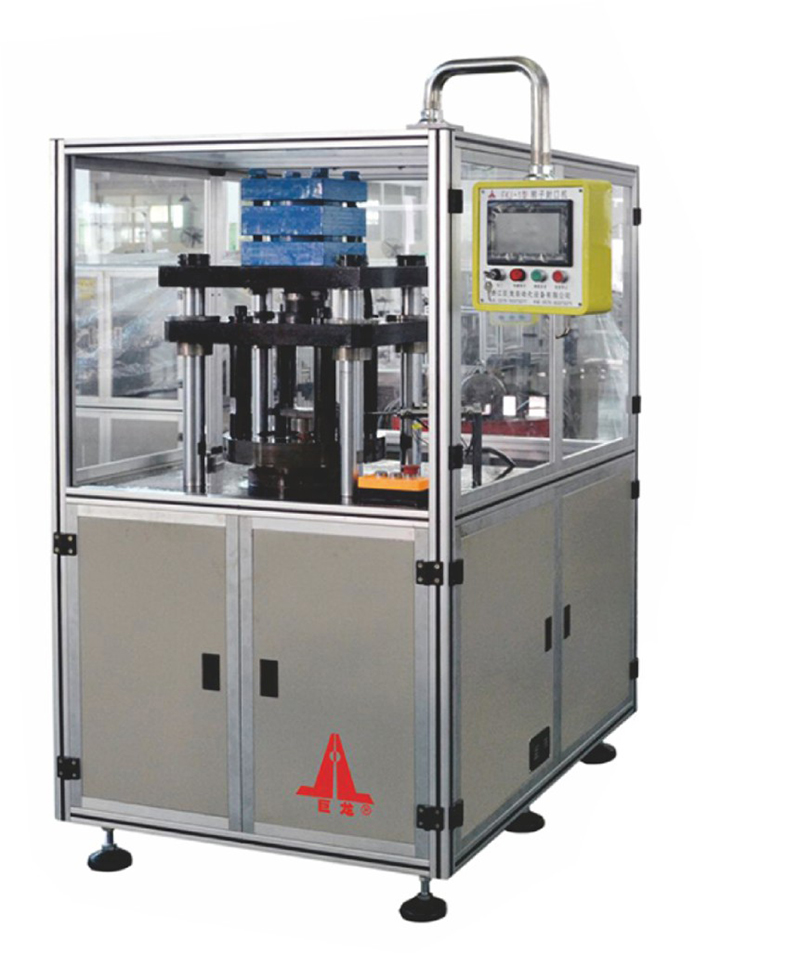

FKJ-1型 電樞封口機
FKJ-1 Model Armature Sealing Machine
本機適用于雙圈開口電樞嵌線后鐵芯封口的專用設備。采用三菱PLC程控，彩色觸摸屏操作，一個液壓缸同時通過工裝對開口電樞鐵芯口嵌線后的翻邊封口，減小槽尺寸，增加機械強度，改善電磁性能，完成封口后自動頂出。
Suitable for double circle opening of the armature wire embedded iron core sealing equipment.Mitsubishi PLC program-controlled,color touch screen operation, a hydraulic cylinder at the same time through the tooling on the opening of the opening of the mouth of the armature core mouth flanging seal, reducing slot size, increase mechanical strength, improve the electromagnetic performance, automatic top out after sealing.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC380V±10% 50Hz |
|
液壓壓力Hydraulic Pressure |
0~14MPa |
|
總功率Total power |
3kw |
| 電樞直徑Armature diameter |
60mm |
|
工作效率Working efficiency |
≤25s |
|
特殊規格可定制Special specifications can be customized |
|
