SZ-1型 自動扭形穿線機

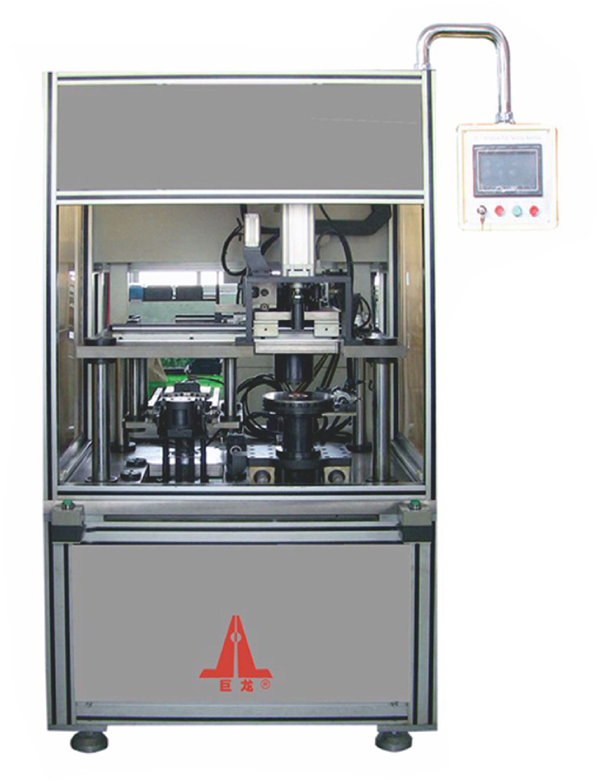

SZ-1 Armature Coil Automatic Shaping and Inserting Machine
適用于彎U入杯(工裝)后，人工移入本機對尾部進行扭形移位，人工放入插好紙的電樞，放在工作位上后，即自動同步將繞組一次性穿入鐵芯，于彎U插入機配套工作，一人操作。
Applicable to after wire is bended as U shaped into the cup (tooling), manually moved into the machine to twist the tail, manually put the armature with paper inserted on the working station, then automatically synchronize the windings into the iron core at one time .The machine is a match for U-shaped bending machine and operated by one person.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC380V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7 MPa |
|
總功率Total power |
2kw |
| 電樞槽數Number of armature slots |
18~32 |
| 線展開長度Feeding length |
150~400mm |
| 轉子外圓Rotor cylindrical |
≤Φ90mm |
